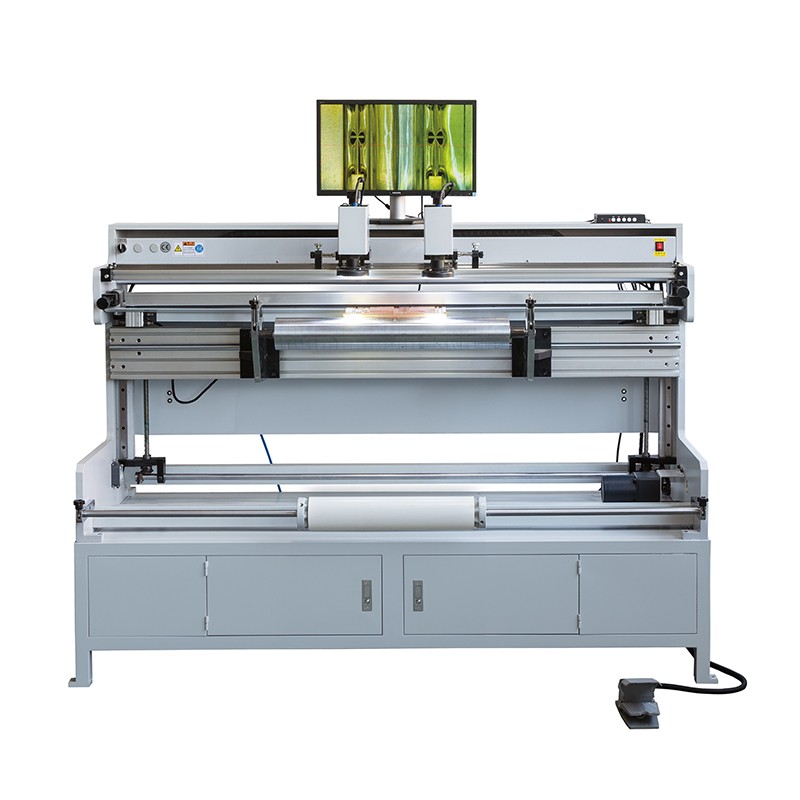

Flexo Plate Mounter Mouting Machine



Suitable material:
  • resin plate
  • flexo plate
Application:
  • printing machine
  • industrial products

Get A Quote

Flexo Plate Mounter Mouting Machine



More video check here !

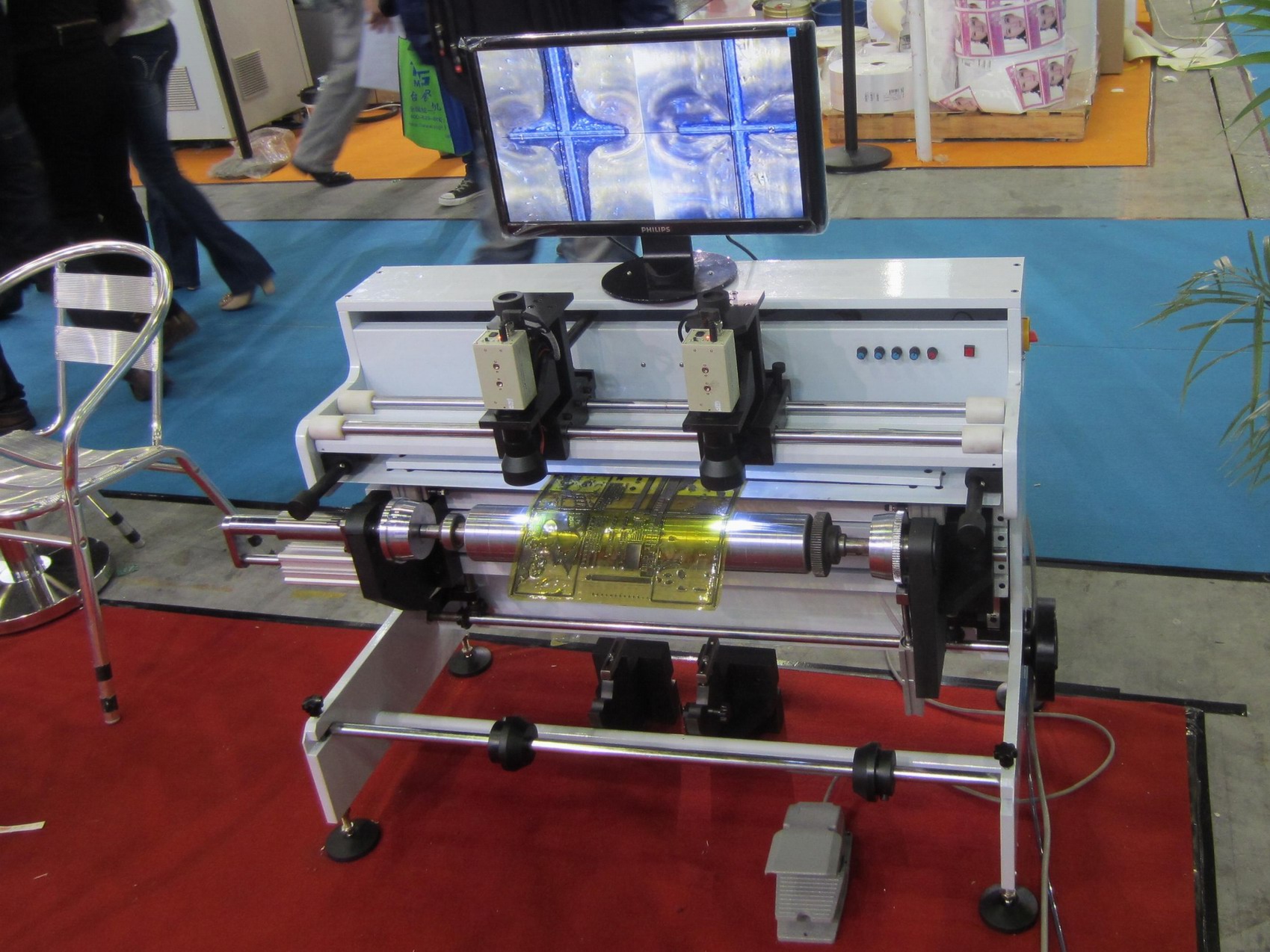

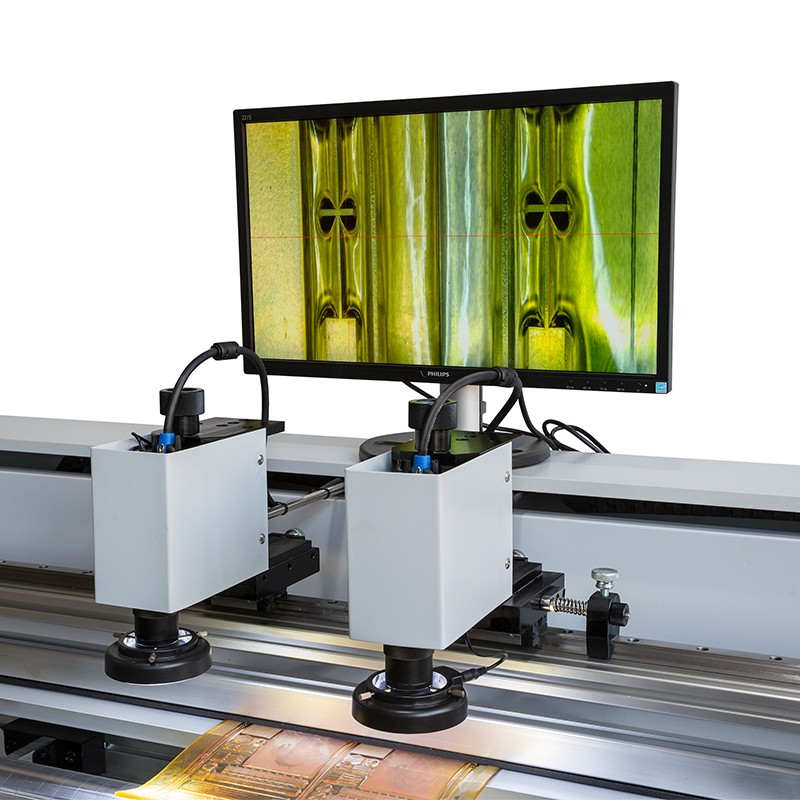

Sample Pictures:



Details: customized is available







Main Technical Parameters:
Machine Model 450 650 1000 1200
Effective Width of the Plate 450mm 650mm 1000mm 1200mm
Max Plate Cylinder Circumference 800mm 800mm 1200mm 1200mm
Precision Better than ±0.15MM Better than ±0.15MM Better than ±0.15MM Better than ±0.15MM
Resolution Ratio of the Camera Lens 650 Line 650 Line 650 Line 650 Line
Maximum Focal Length of the Camera Lens 70 Times 70 Times 70 Times 70 Times
Voltage 220V/380V 220V/380V 220V/380V 220V/380V
Measurement 1200*600*1350mm 1200*700*1350mm 1500*700*1650mm 1700*700*1650mm
Machine weight 300kgs 360kgs 390kgs 450kgs

Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.



Optional (need extra cost):

Please consult the supplier for this



Famous Brand Is Available For Us:

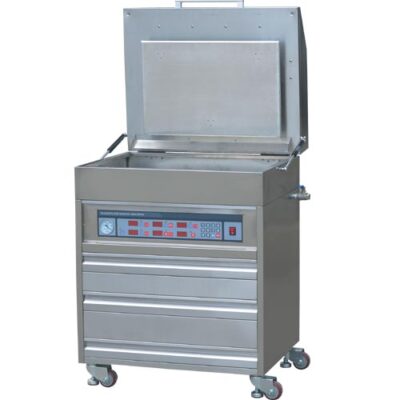

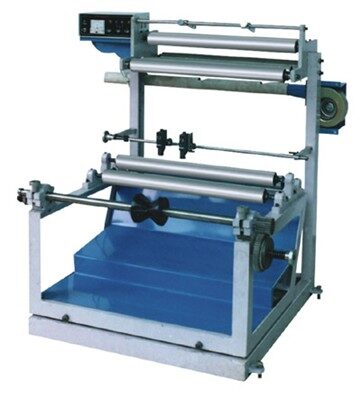

Related Machine:

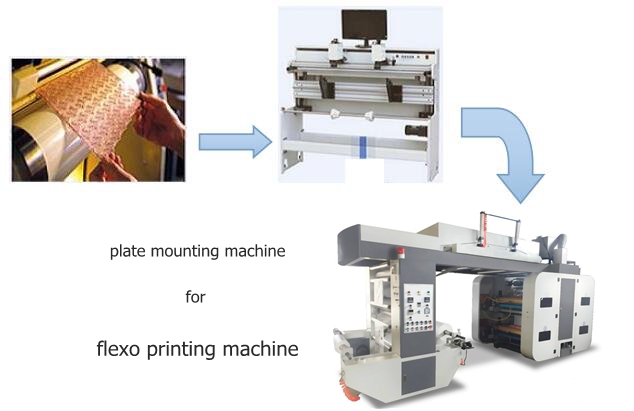

Plastic Products Production Process

film blowing machine, printing machine, slitting machine, recycling machine



Package and Delivery:

package and delivery



What Does the Customer Say:

Customer evaluation for Mentor Machinery



FAQ:

Q: What’s the price of machines?
A: Pls provide following information:
1)How much plate size do you need to make?
2)What is your detail requirements?
