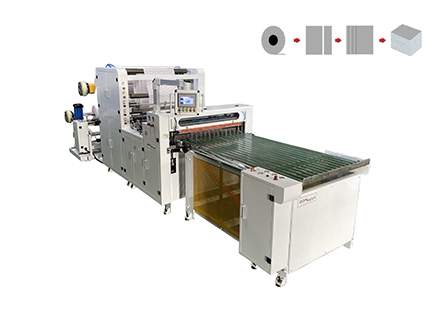

Paper Reel To Sheet Cutting Machine For Hamburger Sandwich Paper
More video check here !
Sample Pictures:
Main Features:
The machine is mainly used for vertical and horizontal cutting of thin paper below 200g. The problem that the food paper can not be automatically sorted is solved. When the stacking quantity reaches 100, 200 and 500 sheets, the cutter stops for a few seconds, and the conveyor belt pushes the paper stack forward. The workers stand by could collect and pack them directly. Which is more easy and intelligent. It is suitable for food paper industry (hamburgers, sandwiches), self-adhesive paper, SMS non-woven fabric and other materials. Servo motor for feeding and PLC&servo encoder for tension control, higher sheeting accuracy. The standard configuration is 2 rolls feeding. Hydraulic shaftless loading stand can be selected. It has the characteristics of simple operation and convenient maintenance.
Details: customized is available
Main Technical Parameters:
Model | K 800 | K 1100 | K 1300 |
Max. Unwind width | 800mm | 1100mm | 1600mm |
Max. Unwind Dia. | 1000mm | 1000mm | 1000mm |
Paper Thickness | 28-300gsm | 28-300gsm | 28-300gsm |
Max. Machine Speed | 150cuts/min | 150cuts/min | 150cuts/min |
Max. Meter Speed | 120m/min | 120m/min | 120m/min |
Cutting Length Range | 50-600mm | 50-600mm | 50-600mm |
Cutting Precision | ≤±0.2mm | ≤±0.2mm | ≤±0.2mm |
Max. Pile Height | 200mm | 200mm | 200mm |
Slitting Knives | 2-5pcs | 2-5pcs | 2-5pcs |
Voltage Request | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Air Request | 0.8Mpa | 0.8Mpa | 0.8Mpa |
Machine Power | 8kw | 12kw | 16kw |
Machine Weight | 2000kgs | 3200kgs | 4500kgs |
Machine Size | 4600*1770*1800mm | 5200*2070*1800mm | 6500*2270*1800mm |
Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.
Optional (need extra cost):
Please consult the supplier for this
Famous Brand Is Available For Us:
Related Machine:
film blowing machine, printing machine, slitting machine, recycling machine
Package and Delivery:
What Does the Customer Say:
FAQ:
Q: What’s the price of machines?
A: Pls provide following information:
1) What’s the product that needs to be cut (film, paper, non-woven, etc.)
2) What’s the diameter of the rolling material?
3) What’s the cutting length?
4) How much speed do your product need?
5) What’s the maximum and minimum dimensions including the thickness?
