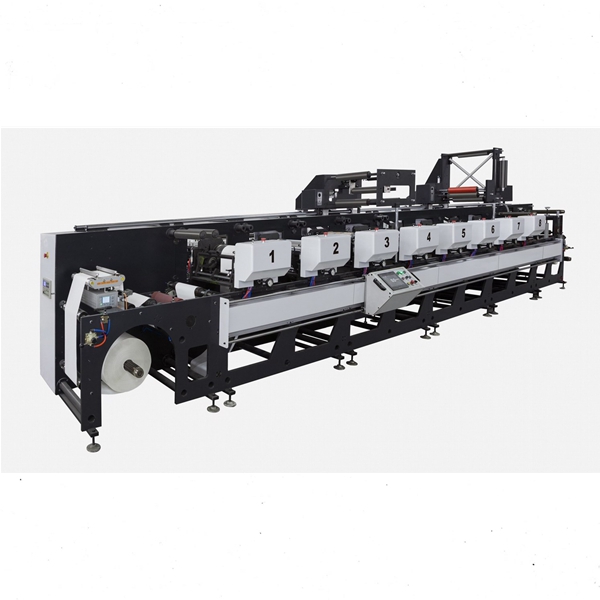

Hologram 6 7 8 Color Label Flexo Printing Machine High Speed Unit Inline Type
More video check here !
Sample Pictures:
Main Features:
1. Unwind and Rewind with Auto Tension Control.
2. Use ceramic anilox cylinder to Transfer the Ink.
3. Printing unit Adopt 360 degree plate adjustment.
4. IR drying design. UV drying, web video and die cutting station can be customized.
5. 1 color to 8 colors can be customized according to your need.

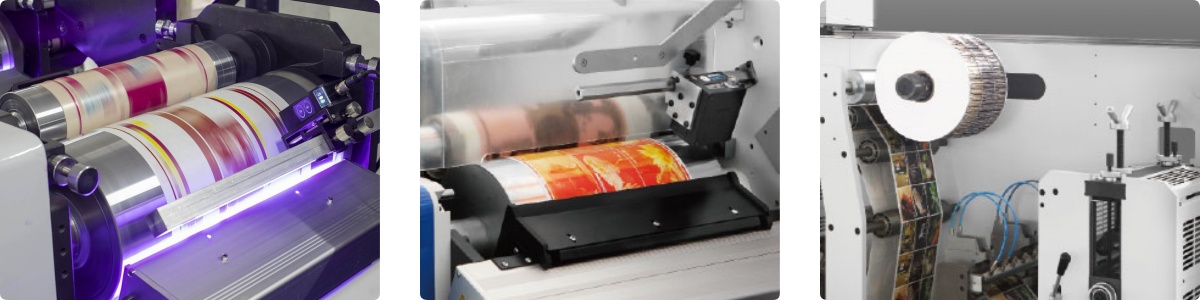

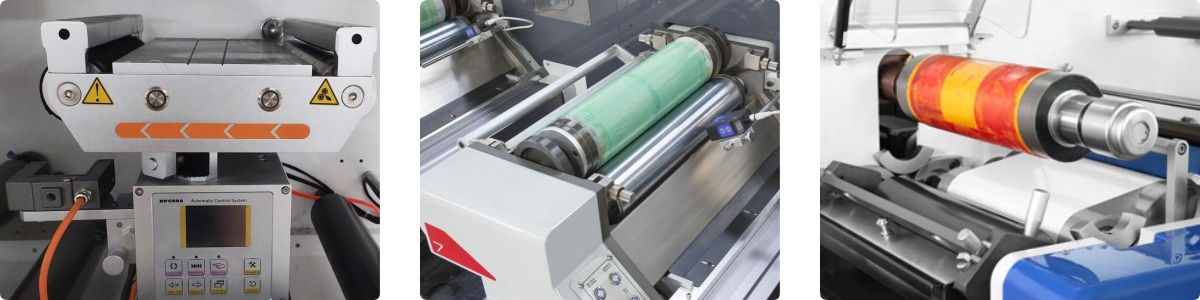

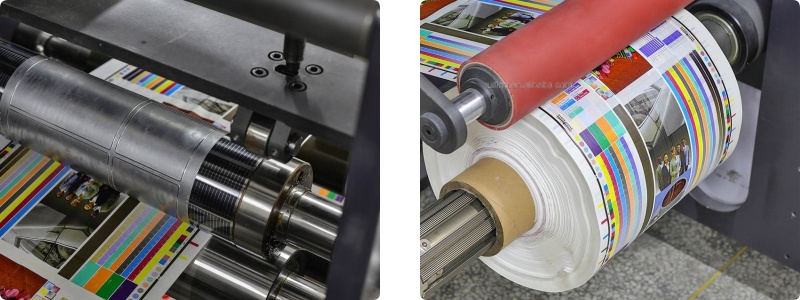

Details: customized is available
Main Technical Parameters:
| 1 | Printing color | 1 color to 8 colors |
| 2 | Type of printing | flexo printing unit inline type |
| 3 | Suitable material | roll label, roll paper, roll plastic film such as PVC, OPP, PE, aluminum foil |
| 4 | Material feeding width | 350mm / 450mm / 650mm / 850mm / 1150mm (according to your material) |
| 5 | Max. printing width | 340mm / 440mm / 640mm / 840mm / 1140mm |
| 6 | Printing length | 177.8mm up to 355.6mm (222.25 to 539.25mm is optional, customized is available) |
| 7 | Printing speed | 10~150 m/min (depending on the specific material, ink) |
| 8 | Suitable Ink | Water based ink / Solvent based ink / LED UV ink / UV ink |
| 9 | Register precision | Longitude：±0.10mm
Transverse：±0.10mm |
| 10 | Max. Diameter of unwind | Φ600mm (customized is available) |
| 11 | Max. Diameter of rewind | Φ600 mm (customized is available) |
| 12 | Rewind and Unwind web cylinder | core 3 inches |
| 13 | Drying source | IR drying (UV drying is optional) |
| 14 | Power Supply voltage | 3 phase 380V，50Hz (customized is available) |
Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.
Optional (need extra cost):
Please consult the supplier for this
| Movable Turn Bar | Movable Cold Stamping |
| Movable Turn Bar | Die Cutting Roller Lifter |
| Slitting Unit | Hot Air Dryer |
| Video inspection system |
8 color flexo printing machine, 6 color flexo printing machine, 6 color flexo printing machine price,label flexo printing machine, flexo label printing machine, flexo printing machine, flexo printing machine manufacturers, flexo printing machine price, flexo printing machine china, in-line flexo printing machine, inline flexo printing machine, shrink sleeve printing machine, shrink film printing machine, shrink sleeve label printing machine, shrink label printing machine, water bottle sticker printing machine, pvc shrink label printing machine, uv flexo printing machine,
Brand we work with:
Production Process :
Package and Delivery:
What Does the Customer Say:
FAQ:
Q: What’s the price of machines?
A: Pls provide following information:
1)The photo of printing sample.
2)What material to print for?
3)How many color does your product need?
4)How much of your material width?
5)How much the maximum diameter and weight of roll material?
