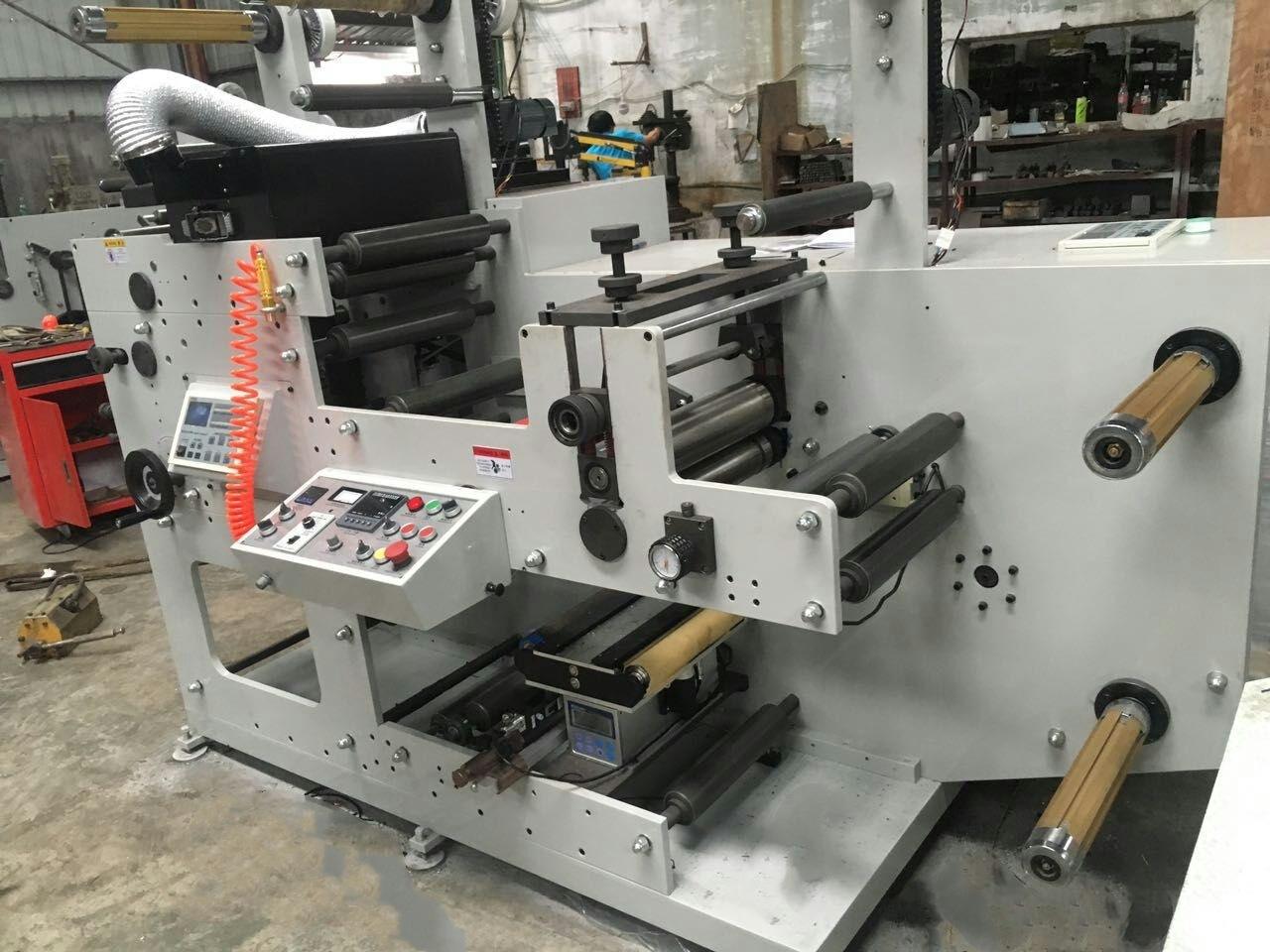

1 One Color Small Flexo Printing Machine



Suitable material:
  • self-adhesive label
  • sticker label
  • roll paper
  • plastic film
  • aluminum foil
Application:
  • self-adhesive sticker
  • paper products
  • heat shrink sleeve label
  • medical pharmaceutical, etc.

Get A Quote

1 One Color Small Flexo Printing Machine



More video check here !

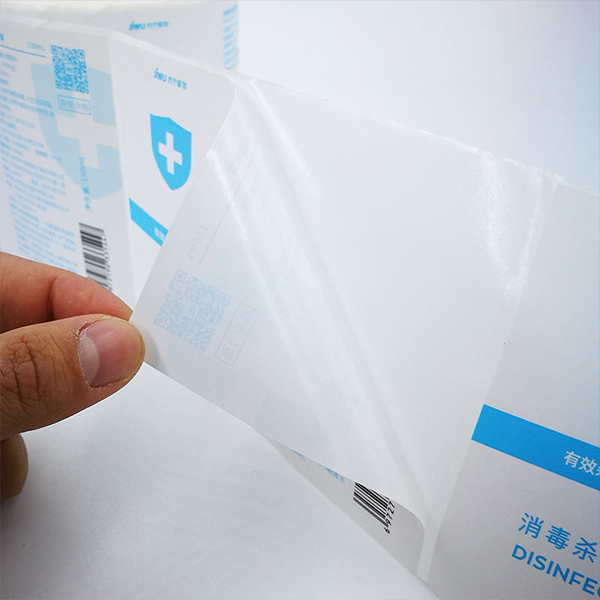

Sample Pictures:





Main Features:

1. Unwind and Rewind with Auto Tension Control.
2. Use ceramic anilox cylinder to Transfer the Ink.
3. Printing unit Adopt 360 degree plate adjustment.
4. IR drying design. UV drying, web video and die cutting station can be customized.
5. 1 color to 8 colors can be customized according to your need.



Details: customized is available





Main Technical Parameters:
Printing color 1 color
Type of printing flexo printing stack type
Suitable material roll label, roll paper, roll plastic film such as PVC, OPP, PE, aluminum foil
Material feeding width 320mm / 450mm / 620mm / 820mm (according to your material)
Max. printing width 310mm / 440mm / 610mm / 810mm
Printing length 177.8mm up to 355.6mm (222.25 to 539.25mm is optional, customized is available)
Printing speed 10~60 m/min (depending on the specific material, ink)
Suitable Ink Water based ink / Solvent based ink / UV ink
Register precision Longitude:±0.15mm

Transverse:±0.15mm

Max. Diameter of unwind Φ600mm (customized is available)
Max. Diameter of rewind Φ600 mm (customized is available)
Rewind and Unwind web cylinder core 3 inches
Drying source IR drying (UV drying is optional)
Power Supply voltage 3 phase 380V,50Hz (customized is available)

Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.



Optional (need extra cost):

Please consult the supplier for this

UV curing LED UV curing
Corona treatment Turn bar
Cold foil stamp unit Laminate unit
Die cutting station Slitting unit
Sheeter conveyor device PLC control system
Video inspection device Servo drive system



Brand we work with:



Production Process :



Package and Delivery:

loading with wooden case and pallet                  wooden case package



What Does the Customer Say:

Customer evaluation for Mentor Machinery



FAQ:

Q: What’s the price of machines?
A: Pls provide following information:
1)The photo of printing sample.
2)What material to print for?
3)How many color does your product need?
4)How much of your material width?
5)How much the maximum diameter and weight of roll material?
